In today's pursuit of minimalist industrial aesthetics, more and more devices are adopting the "embedded flat design" concept—buttons, interfaces, and even locks that once protruded are now quietly integrated into the overall structure. This design revolution not only reshapes the appearance of products but also brings dual breakthroughs in safety and functionality.

With the continuous increasing demand of electric vehicles,  the EV charger industry is experiencing an unprecedented rapid development and fierce competition. As basic needs are met, minimalist aesthetics becomes the new focus of competition.

Can the commonly used protruding locks on EV chargers still meet the development needs?

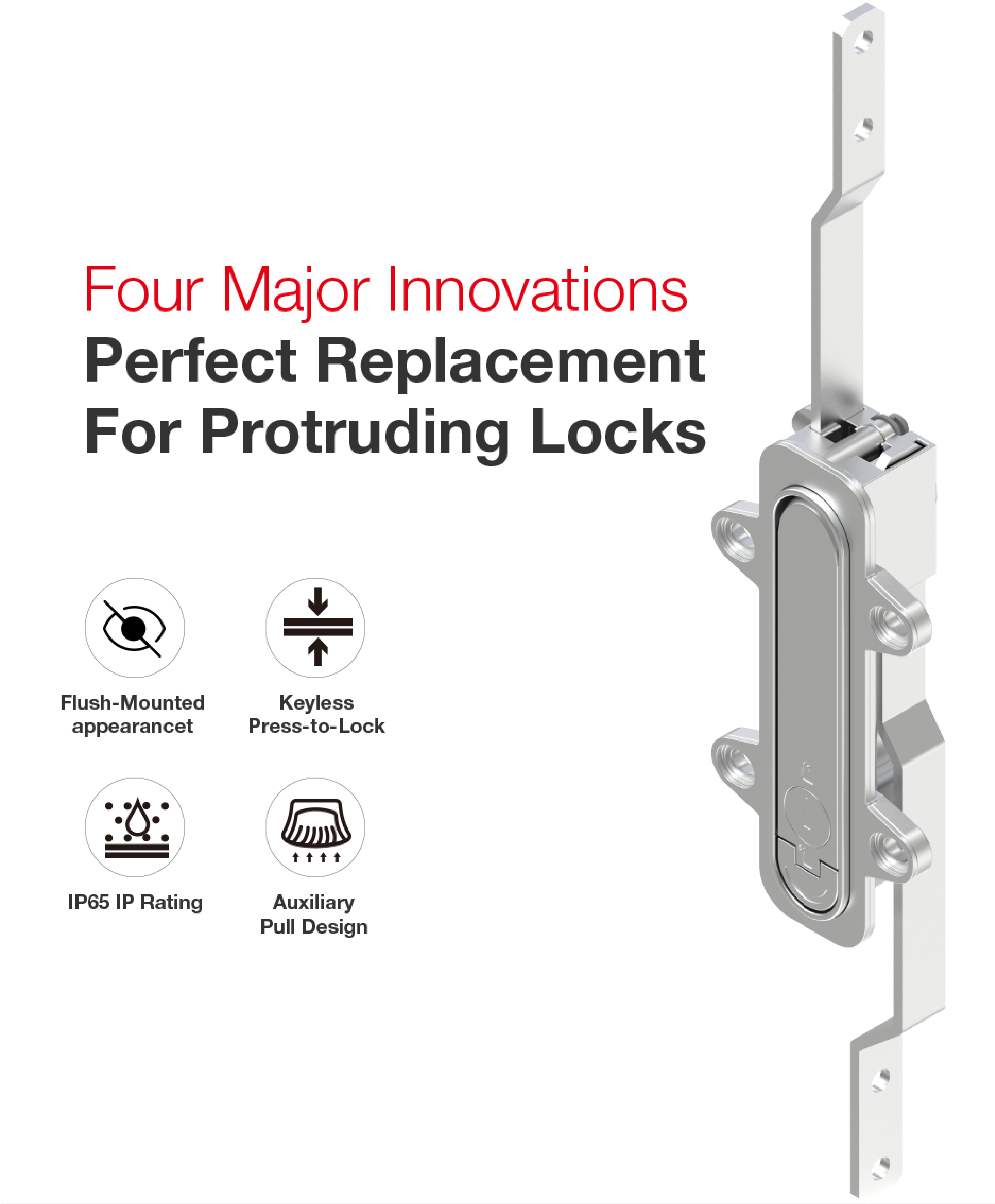

Yeeka, as a more secure access solutions provider, has innovatively developed the 1156 Flush-Mounted Swinghandle. With its flush-mounted appearance and minimalist design, 1156 helps upgrade the appearance and enhances the competitiveness of EV chargers products.

Do protruding locks meet the current development trend?

Featureless appearance?

Prone to bumps during operation and transportation?

It's time for a change.

Seize the opportunity.

Follow the new trend of embedded flat design.

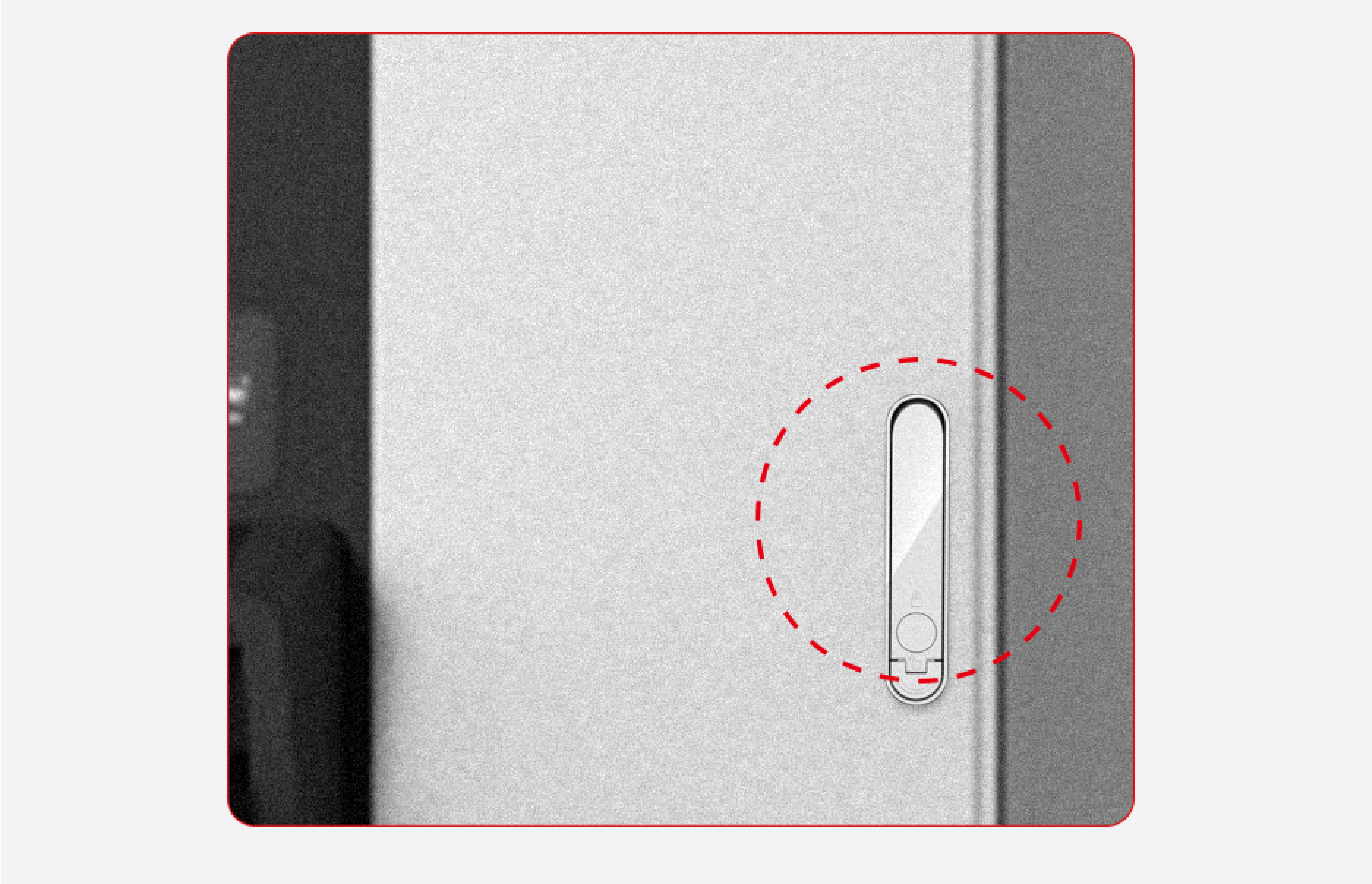

Flush-Mounted appearance

Aesthetic + Solving Transport Scratches

The lock is flush with the cabinet surface, making the entire device more aesthetically pleasing and preventing damage caused by protruding lock housing during transportation.

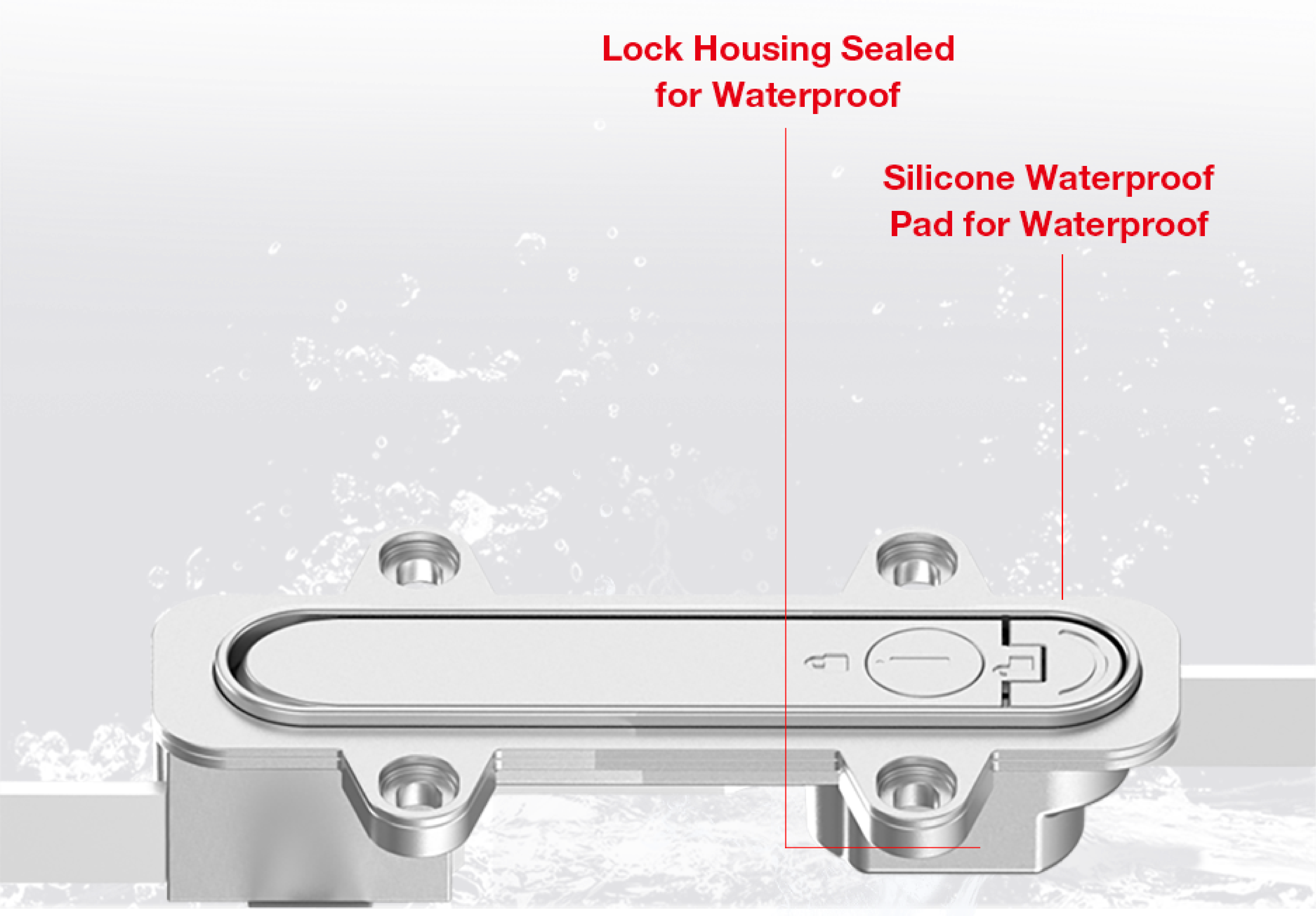

IP65 IP Rating

Confidently Handles Rainy Weather

The bottom of the lock housing is fully sealed, with a silicone waterproof pad on the surface, preventing rainwater from entering the cabinet.

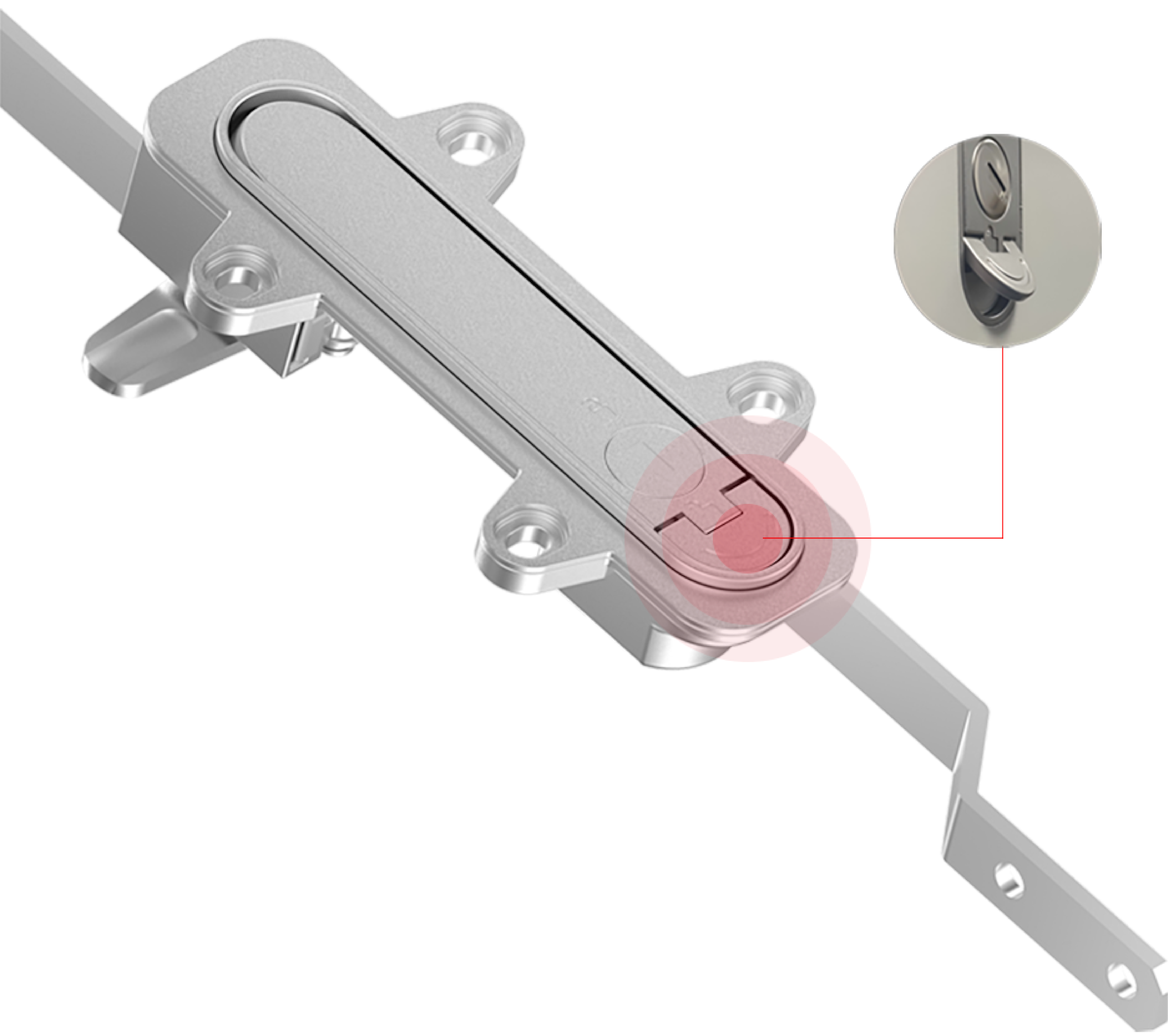

Auxiliary Lift Pull Tab

Assists In Opening Handle

When the lock cylinder is in the open state, the bottom spring will open to about 45°. In rainy, snowy, muddy and sandy environments, the lift pull tab can help maintenance personnel open the handle.

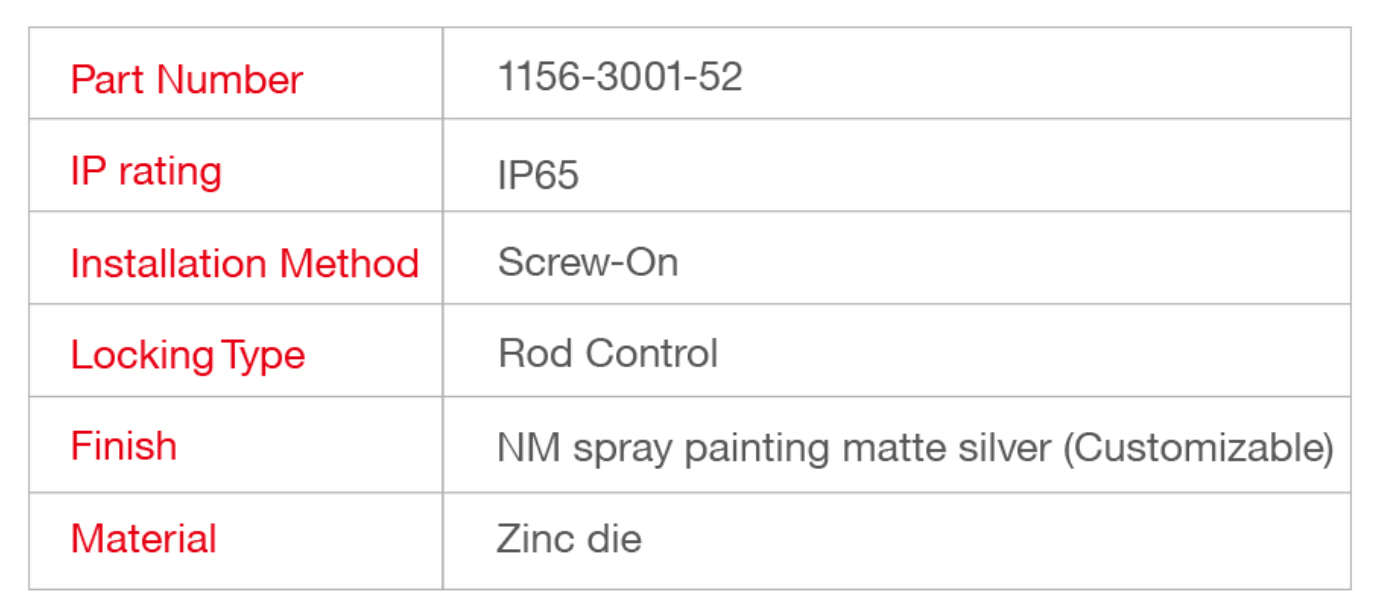

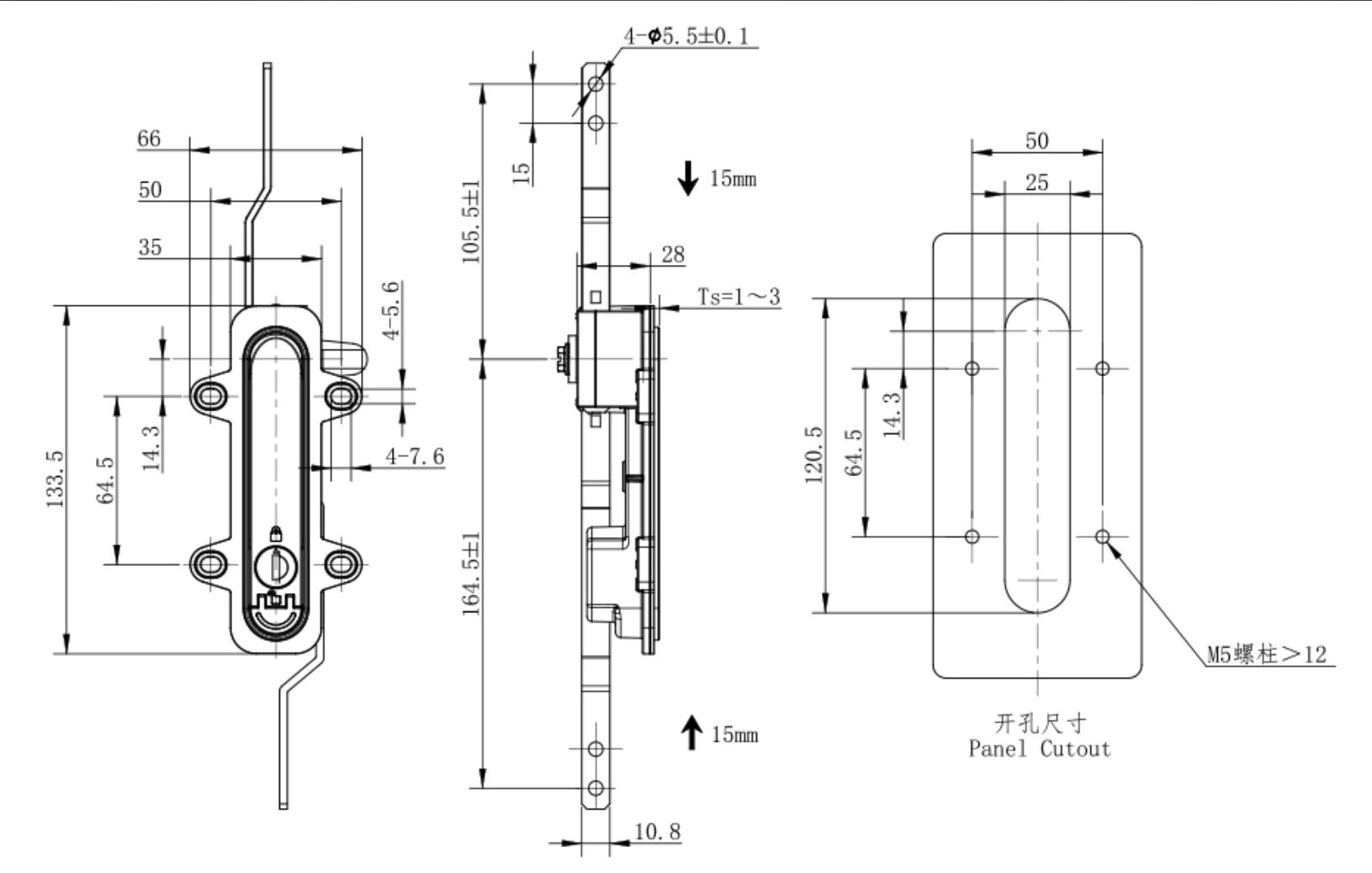

Product Date Sheet

Know More Details

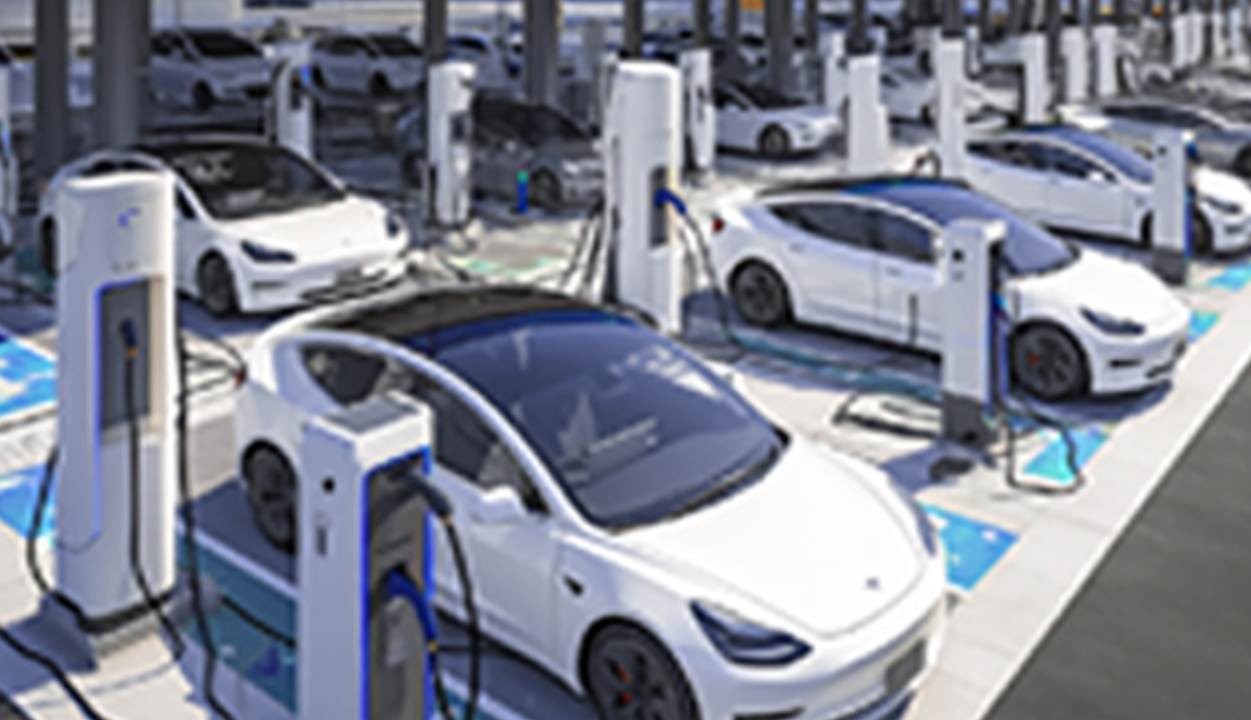

Application

EV Chargers
